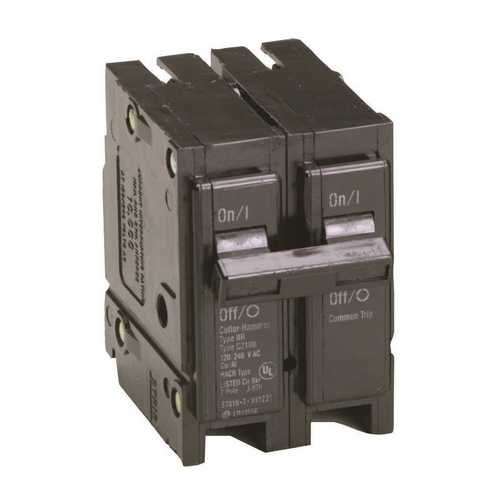

Roll over image to zoom in Eaton BR230 BR 30 Amp 2 Pole Circuit Breaker

• Full Size Type BR two pole 30 amp breaker
• Ulf Approved for use in Cutler-Hammer, Westinghouse, Bryant ,Challenger

The Eaton Cutler-Hammer 30 Amp Double-Pole Type BR Replacement Circuit Breaker is designed to protect house wires from overheating or causing a short-circuit. Double pole breaker applications include use with built-in oven, range top, clothes dryer and water heater. The UL-listed breaker is compatible with Westinghouse, Challenger and Bryant load centers and has a maximum load of 240-Volt.

• Primary function of a circuit breaker is to protect the wire from overheating (overload) and fault currents (short circuit)
• Amperage rating: 30 Amp
• Double pole 2 in. wide breaker
• Trips to center position - must turn off then turn back on
• For use in type BR load centers
• Type BR breakers are UL approved genuine replacement breakers for load centers made by Westinghouse, Challenger and Bryant
• Interrupt rating - 10 kAIC
• Voltage rating is 120/240-Volt
• Wire size - #14-4 AWG Cu/Al at 60°C or 75°C
• Gauge/number of wires with ground - 10/3
